60 X 60 x 50cm
60 x 60 X 75cm
60 x 60 X 150cm
Safe Battery Charging Solutions
RAMBSS MODULES
SUPERYACHTS AND SHIPPING
WATER TIGHT FOR MARINE USE
SUITABLE FOR ALL WATER TOY BATTERIES
MODULAR SYSTEM
3 SIZE OPTIONS
REMOTE MONITORING & ALARM
FUELING
CUSTOM FINISHES AVAILABLE
SUITABLE FOR ALL WATER TOY BATTERIES
MODULAR SYSTEM
3 SIZE OPTIONS
REMOTE MONITORING & ALARM
FUELING
CUSTOM FINISHES AVAILABLE
RACLAN SQUARE BOX
MARINE
WATER TIGHT FOR MARINE USE
SUITABLE FOR ALL WATER TOY BATTERIES
OPTICAL AND VISUAL ALARMS
CUSTOM FINISHES AVAILABLE
SUITABLE FOR ALL WATER TOY BATTERIES
OPTICAL AND VISUAL ALARMS
CUSTOM FINISHES AVAILABLE
RACLAN BOX
HOME, LEISURE AND COMMERCIAL
TOOL BATTERIES
SCOOTER & E-BIKE BATTERIES
DRONE BATTERIES
FOR WORKSHOPS, BUSINESSES, HOTELS AND HOBBIESTS
CUSTOM FINISHES AVAILABLE
SCOOTER & E-BIKE BATTERIES
DRONE BATTERIES
FOR WORKSHOPS, BUSINESSES, HOTELS AND HOBBIESTS
CUSTOM FINISHES AVAILABLE

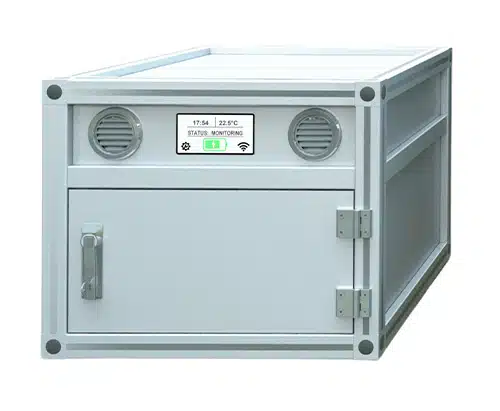

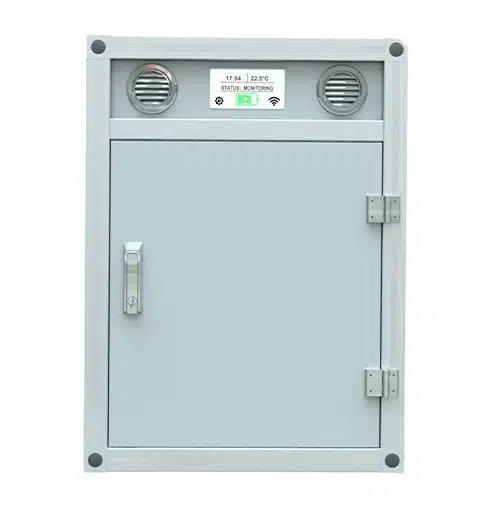

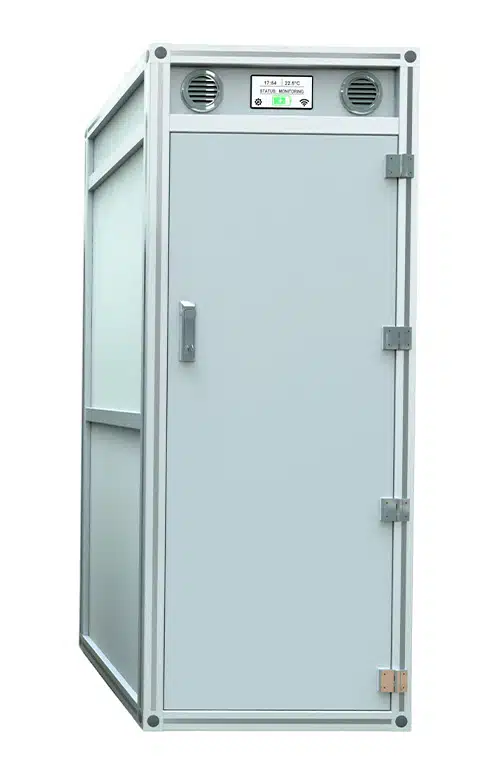

RAMBSS MODULES
(Raclan Maritime Battery Safety System)
Ideal for superyachts with a range of lithium batteries, both removable and integrated.
The modules are waterproof and designed for operation on superyachts. They can be installed during your refit or yard period.
- Can be adapted to the various types and numbers of watertoys on board
- Multi-nozzle extinguishing system - emergency power supply
- Integrated ventilation with filtering for toxins
- Intelligent touchscreen monitor and wireless communication
- Made from ballistic composite with blast buffering elements
- Pending Certification by DMT TÜV Nord
- Can be adapted to the space required on board with millimeter precision.
- Can be adapted to the various types and numbers of watertoys on board
- Multi-nozzle extinguishing system - emergency power supply
- Integrated ventilation with filtering for toxins
- Intelligent touchscreen monitor and wireless communication
- Made from ballistic composite with blast buffering elements
- Pending Certification by DMT TÜV Nord
- Can be adapted to the space required on board with millimeter precision.
Max. total capacity: 6kWh lithium-ion-batteries
LEARN ABOUT OUR INSTALLATION AND MAINTANENCE SERVICE HERE

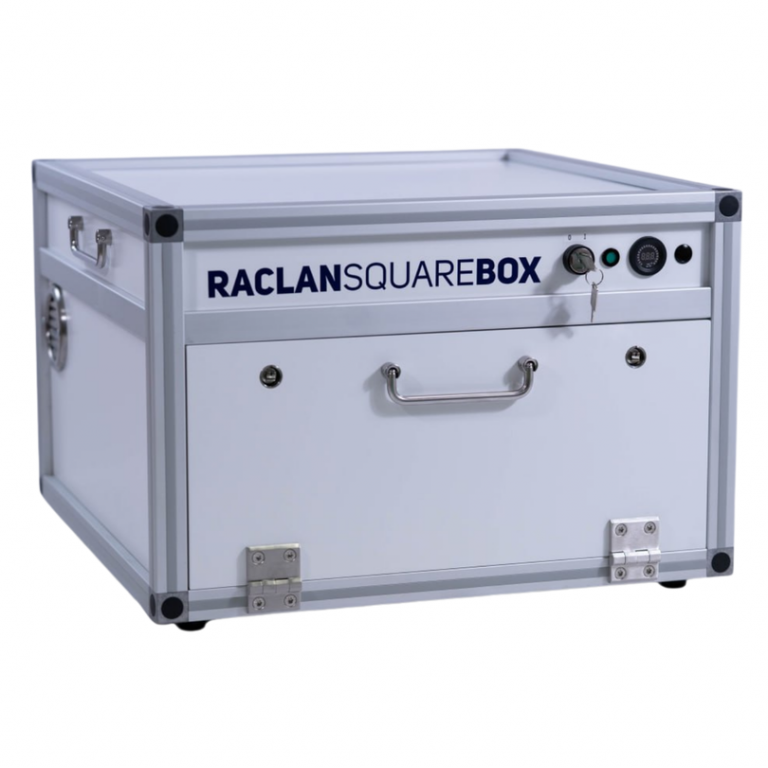

RACLAN SQUARE BOX
Designed for Marine use & Outdoor use.
Water Proof
Large enough to fit removable batteries of all water toy manufacturers
Dimensions (L x W x H): 58cm x 58cm x 40cm
Max. total capacity: 3.5kWh lithium-ion-battery
Product Weight: 35kg
Water Proof
Large enough to fit removable batteries of all water toy manufacturers
Dimensions (L x W x H): 58cm x 58cm x 40cm
Max. total capacity: 3.5kWh lithium-ion-battery
Product Weight: 35kg
The boxes are stackable and can be used permanently on board
With an internal tank with 11 litres of fluid including Trident biological fire extinguishing agent
Integrated exhaust with filter for toxins
Certified by DMT TÜV Nord
With an internal tank with 11 litres of fluid including Trident biological fire extinguishing agent
Integrated exhaust with filter for toxins
Certified by DMT TÜV Nord
RACLAN BOX
The lithium batteries are placed in the box together with the chargers and connected . The front flap is then securely closed. Now the power supply is switched on and monitoring electronics control the charging process and the interior of the box.
If the system detects a rise in temperature or smoke gas, it immediately reports an optical and acoustic alarm.
In the event of an alarm, the pressure-free extinguishing system sprays an environmentally friendly extinguishing agent and coolant over the batteries, thereby stopping the fire. The resulting mixture of smoke and gas 1s routed through filters in the exhaust gas management system so that no toxins can escape to the outside.
If the system detects a rise in temperature or smoke gas, it immediately reports an optical and acoustic alarm.
In the event of an alarm, the pressure-free extinguishing system sprays an environmentally friendly extinguishing agent and coolant over the batteries, thereby stopping the fire. The resulting mixture of smoke and gas 1s routed through filters in the exhaust gas management system so that no toxins can escape to the outside.
RACLAN BOX
THERMAL RUNAWAY DEMONSTRATION
WATCH IT IN ACTION
RACLAN & RAMBSS SYSTEMS
DEVELOPED AND MANUFACTURED IN GERMANY
THE ONLY CERTIFIED LITHIUM-ION BATTERY CHARING AND STORAGE SOLUTION
- Fire proof and Explosion Proof Composite Materials
- Integrated Colling when Charging
- Pressure free Extinguishing Systems
- Filtration System with Toxin Absorbsion
- Charging Management System with Automated Switch off
- Made from Ballistic Composite with Blast Buffering Elements
